Servers and Networked Systems

CEH Consulting specializes in providing computer technologies and services to small businesses that were once the only available to large corporations.  In the past few years, the falling cost of hardware and software has made Fault Tolerant Servers, Virtual Private Networks, High Speed Internet Access and Wireless Networks within the reach of almost any small business.  The photographs below showcase some of the innovative solutions that we have deployed for our clients.

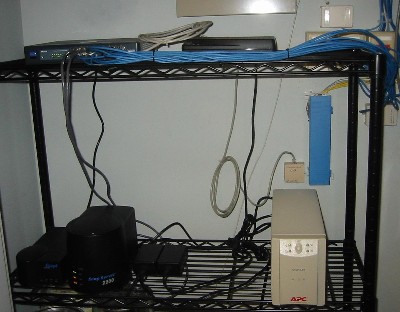

This new media company's communications closet features a new Linksys SR 2016 10/100/1000 Gigabit switch.  This company needs the additional bandwidth to move large graphic files and presentations from one computer to another.  In the lower left corner of the picture are two Snap NAS (Network Attached Storage) Servers.  The entire closet is backed up by an APC battery backup.  Internet connectivity is achieved with an Efficient Networks DSL modem with an integrated four port hub.  Click here or on the picture above to see a diagram of this network.

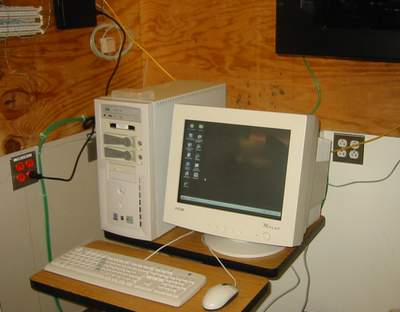

This fault-tolerant server features RAID 1 mirroring using a Promise Technologies array controller, and an APC battery backup.  It is deployed for a document management company.  It also features Promise Technologies Hot Swap Drive Enclosures that allow easy access to the hard drives for maintenance and replacement.

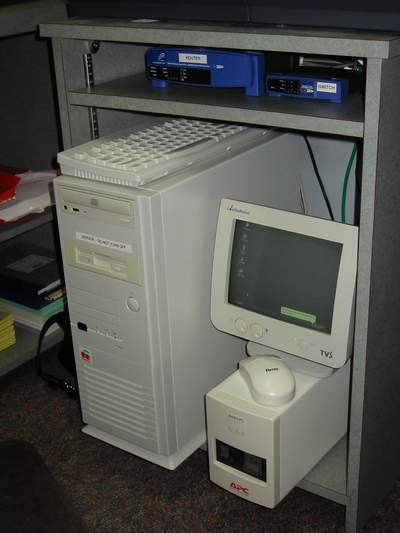

CEH Consulting deployed this fault-tolerant server for a medical practice.  The server features RAID 1 mirroring using a Promise Technologies array controller, and an APC battery backup.  With space as a primary concern it features a compact 9" monochrome display.  Located above the server is the communications hub which features a Linksys Router and a separate Linksys Five Port Switch.

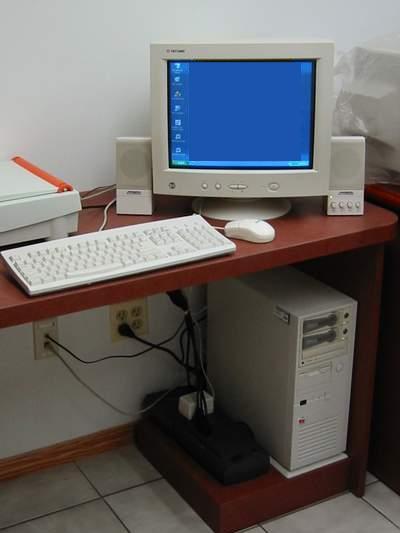

This dual purpose fault-tolerant server/workstation also has RAID 1 mirroring using a Promise Technologies array controller, and an APC battery backup.  It was deployed for a small fabricator.  It features Promise Technologies Hot Swap Drive Enclosures that allow easy access to the hard drives for maintenance and replacement.  This system is connected to a large format Hewlett Packard inkjet printer and a large format UMAX scanner used for scanning and printing out blueprints.

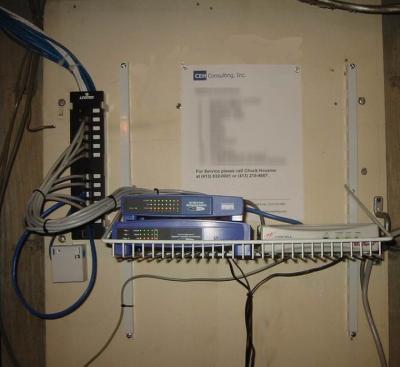

This communications hub of a medical practice features a Linksys Firewall Router, an additional Linksys Eight Port Switch and a Westell DSL modem.

This communications hub features a Linksys VPN Endpoint Router that allows employees to securely access the network at the office from remote worksites.  Internet connectivity is achieved with a Westell DSL modem.
